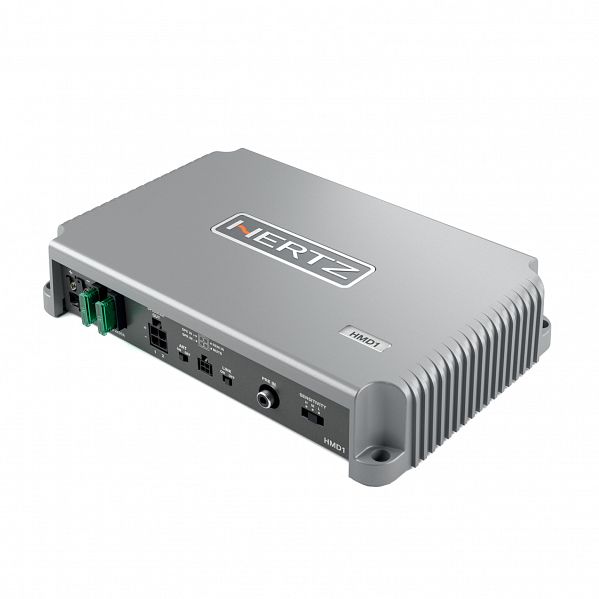

The Hertz Marine HMD1 mono amplifier is the perfect solution to add one or more marine subwoofers to your vessel and is the ideal power extension of HMD8DSP. The extremely compact amplifier is stable at 1 ohm and can supply up to 1000W of power.
Out of stock
Channels: 1
Power supply voltage: 11 – 15 VDC
Idling current (power ON/OFF): 1.3 A / 0.05 mA
Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 50 A
Remote In: 6.5-15 VDC – 1 mA
Distortion – THD (100Hz at 4 Ohm): 0.1 percent
Bandwidth: 10 – 500 Hz
S/N Ratio (A weighted at 1V): 110 dB
Damping factor (1 kHz at 4Ohm): 140
Pre-ln sensitivity: 0.6-6VRMS
Load impedance (MIN): 1 Ohm
Size: 243 x 159 x 48mm
Weight: 1.98 kg
Adjustable Crossovers: Yes
Output Power (RMS) at 14.4 VDC, THD 1 Percent:
1Ch: 500W x 1 (4 Ohm)
1Ch: 800W x 1 (2 Ohm)
1Ch: 1000W x 1 (1 Ohm)
Total Power RMS: 1000W
Inputs and Filters:
Inputs: Pre in
HMD1: MARINE 1000W 1 CHANNEL AMPLIFIER (HMD1)
