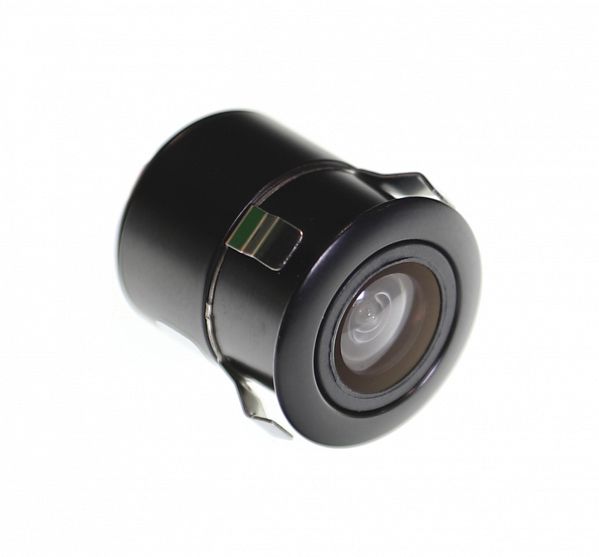

The Gator G35CL Flush Mount Camera can be used as a front, rear or reverse camera. The IP67 rated camera discreetly mounts into the front or rear bar of the vehicle and provides a 100 degree field of view. It has three loop setting adjustments which can be changed during installation:
Blue Loop – default setting PAL, cut the loop for NTSC
Green Loop – default setting PARKING LINES, cut the loop to remove PARKING LINES
White Loop – default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE
The G35CL is compatible with any PAL or NTSC display with RCA connection and it comes supplied with a 18.5mm holesaw for installation, 1.5-metre power wire and a 6-metre video RCA.
MOUNT TYPE: FLUSH MOUNT
CAMERA TYPE: FRONT, REAR OR REVERSE
LENS ANGLE: 100 DEGREE
IMAGE SENSOR (CMOS or CCD): CMOS
PARKING GRID-LINES: OPTIONAL (LOOP SEETTING ADJUSTMENT)
PAL OR NTSC: SWITCHABLE (LOOP SETTING ADJUSTMENT)
MIRROR IMAGE: SWITCHABLE (LOOP SETTING ADJUSTMENT)
IP RATING: IP67
VOLTAGE: 12V DC
PLUG TYPE CAMERA END: 4 PIN MICRO DIN PLUG
PLUG TYPE MONITOR END: RCA
LENGTH OF VIDEO CABLE: 6M
DIMENSIONS (CAMERA ONLY): 18MM DIAMETER
INCLUSIONS:
FLUSH MOUNT CAMERA
18.5MM DRILL BIT HOLESAW
6M RCA LEAD WITH TRIGGER
CAMERA HARNESS
PRODUCT MANUAL
G35CL: FLUSH MOUNT CAMERA WITH LOOP SYSTEM
