AudioControl ACX Series 4 Channel Amplifier

AudioControl ACX Series 4 Channel Amplifier
AudioControl ACX Series 4 Channel Amplifier - Image 2
AudioControl ACX Series 4 Channel Amplifier - Image 3
AudioControl ACX Series 4 Channel Amplifier - Image 4
AudioControl ACX Series 4 Channel Amplifier - Image 5
AudioControl ACX Series 4 Channel Amplifier - Image 6
AudioControl ACX Series 4 Channel Amplifier - Image 7

$999.00

  • 5 Year Warranty when installed by Kenay Kustoms
  • IP Rating: IPX6
  • 4 Ω – 50 W x 4 RMS
  • 2 Ω – 75 W x 4 RMS
  • Bridged 4 Ω – 150 W RMS
  • Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.2%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass

$999.00

SKU ACX.300.4 Category Tag Brand:

Description

ALL WEATHER 4 CHANNEL AMPLIFIER

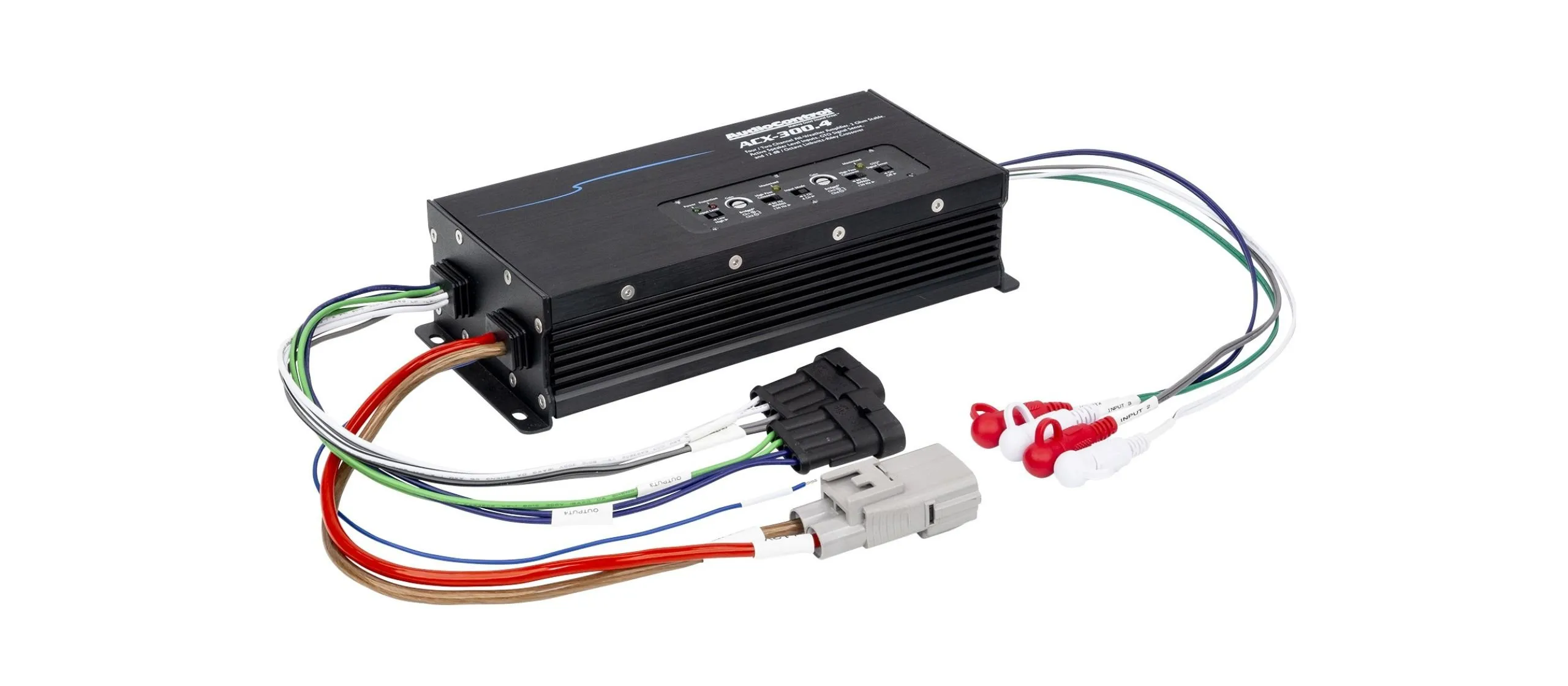

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.

Additional information

Weight 2500 g

Application Guide

Product Data / Notes
Manufacturer Part Number ACX-300.4
Rated Continuous (RMS) Power @ 14.4v 4Ω – 50w x 4 RMS / 2Ω – 75w x 4 RMS / 4Ω – 150w BRIDGED
High level Input Voltage 12 V rms (120 Watts Per Channel)
Input Channels 4 Channel RCA + 4 Channel High Level
RCA Pre-Outs NONE
Remote Turn On Feature YES
Total Harmonic Distortion Rating 0.20%
Crossover Frequency Selectable 80Hz / 120Hz / Bypass
Crossover Type Independent 12 dB Linkwitz-Riley Crossovers
Dimensions 239mmW x 76.2mmD x 44.5mmH

Downloads

acx series literature

acx 300.4 Quick Start Guide
